Start your live tagging by selecting a live ingest stream, represented by a place holder, from Workspace 6 (W6). Then select W7 for live Event tagging. You will find the Event tag list on your left side with the default Tab already selected. All assets will always hold one “Official” Tag-list, but may have as many as needed.

The official tag list is created live by one or several representatives. They are responsible for the content in the official list, and it is protected from modifications by any other tag representative. It could be empty but may contain already tagged events from other colleagues. The Tab to the right (New/Open+) provides the details and metadata collected from the live stream (broadcasted event).

The Tab - New/Open+
Besides the default list (Official), you may create your own additional Tags list. Name your list and fill in an informative description. The next four input drop-down frames are not editable. The metadata are prefilled automatically from the live stream.

Icon set. These icon collections will be visible from the main menu and reflects the event you are tagging. The icons are placed there to help the you identify the event “type” as fast as possible. We will get back to the application short cuts later in the article. Select one or several Icon sets by clicking on the event item while holding down the Ctrl key (pc).

Before pressing “Create list” you must select the list privacy policy. Private, for you (and the admin) only or Group to make it visible for your colleagues. The last option is Public, visible to all. You are finished creating your personal list.

All the available lists are listed in the bottom. They are also available from the “Official” tab list in the main menu. To hide uninteresting list from the main menu Tab list, you can click on a list “eye” icon to hide it. Click once more to make it visible again. The “Load list” button has the same function. Select the hidden list by clicking it once and the press the “Load list” to make it visible (or loaded into main menu tab). If you are granted access, you may select a list and press the “Edit list” button to modify it.

Back to the main menu
Let us look at the right side of the main menu. The title module in top center provides time/date, location and the event you are connected to. An indicator will light up when the event is live and you can start tagging.

How to tag the events
Your main concern is how to tag as efficient as possible, and what if a new event occurs while still in edit on the previous event. The most critical is to place the tags time stamp as correct as possible to the point of event occurrences.
You have several options to achieve that:

  • Hit spacebar – An unidentified (neutral) tag is created and immediately recorded and visible in tag list (left side). Next step is to identify the type of event. Select from the available icon collection and click the one that represent the event type. The tag list will update the active event with its correct identifier and change the icon accordingly. More about the event edit later in the article.
  • Click the corresponding Icon directly (omit spacebar). The same procedure as above, but the event is directly identified in the tag list.
  • Click on the “Event time” button above the Icons and follow the steps identical to “spacebar”
  • Press the letter “i” or press the button “Mark in”. This is the same as pressing spacebar or the button “Event time” except for the Tag length and behavior. Explained later in this article.
    The only way to create a tag with reference to Mark in, is to click on the “Mark in” button or by pressing the letter ”i” on your keyboard. Any other tag creation will be as an Event with Pre- and Post-roll.

Different Tag states in the tag list window.

Different states listed below:

  • Orange – The active tag. What ever you do will affect the active tag. With reference to image 4, the orange tag is the most recent tag and has no defined event id (and no data)
  • Red – Same as above, but not active.
  • Grey – an identified “warm up” event but not yet filled with data. (The above event was probably tagged while editing this.)
  • White with Event icon and description entered. This tag is finished. Note that it can be modified any time later to enhance or correct the input.

The tags are sorted on the in-point with the most recent tag at the top.The description content is sorted with reference to the tabs in the tag editor:

  • Athletes
  • Teams
  • Coaches
  • Officials
  • Event description

The Tag edit window

The below image reflects the tag edit options available. Observe that while you have tagged a previous Warm up event, you have chosen to tag and edit the interview before finishing the less important warm up tag. You are free to prioritize the importance and choose your own workflow.

The difference between Mark in and Event time.

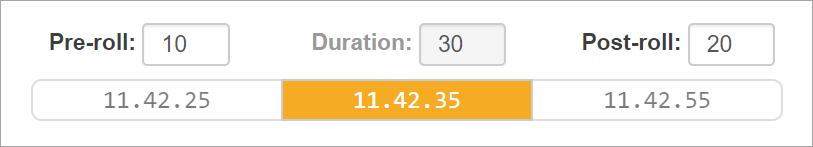

The image indicates the Event with an “Event time” that is defined as follows:
It has a pre-roll of 10 seconds prior to the event occurrence. It has the occurrence time (in orange), and it has the post time of 20 seconds. Default values (configurable) is an event duration of 30 seconds.

These values can be modified individually for each recorded tag.

  • You can adjust the occurrence time by clicking in the orange time field and press up/down arrow buttons on your keyboard. By doing this, you move the occurrence back or forth by 1 second intervals without altering the duration.
  • Click in the Pre- or Post-roll frames to adjust the length in seconds from the event occurrence. By doing this, you also alter the duration of the event.

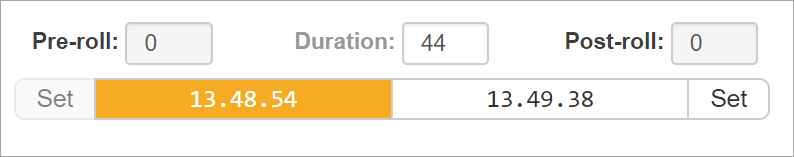

By pressing “i” or “Mark in” you define the start of an occurrence. The default Duration is 30 seconds with a maximum of 999 seconds. To adjust it, you can write the desired duration in seconds directly in the duration frame.

The end time will automatically adapt. Another way is to click in the end time frame and adjust the duration with your up/down arrow keys. To adjust the occurrence start, You can click in the occurrence start frame (orange frame) and adjust it with your arrow keys. The duration will stay constant, resulting in the end time adjusted accordingly. You do not need to use the “Set” buttons next to the time codes.

Event type

If you entered the wrong event type when creating the tag, you can change it from here. If you created the tag by using the spacebar, you must select the event id here
The next step is to select the individuals and their role

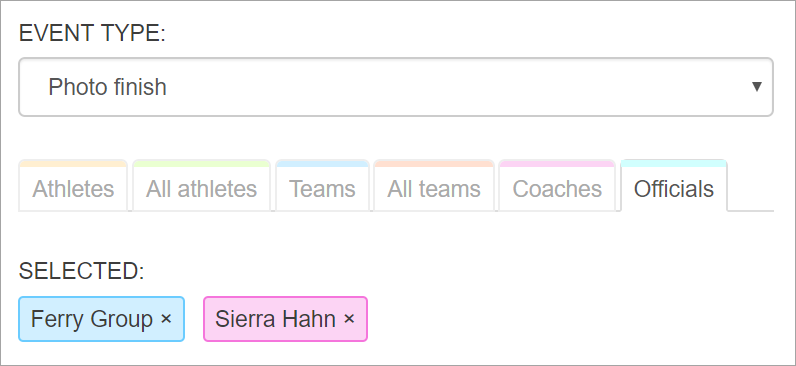

The image reflects the available roles separated with different tabs. The information available are live metadata provided from the event management and may be subject to change during the event. It is easy to add individuals, just click in the desired tabs, and a drop down menu will appear, allowing you to make selections in an efficient manner. The selected individuals are made visible for you to see and their role are defined by color codes for easy identification.

Additional metadata

To further ease the event retrieval for later use, add relevant keywords from a pre-defined database. A relevant and short Event description is also of great importance.


Below the event description, there are several destinations available. They are activated or deactivated by default, depending on the event but can be manually modified. Every active destination will receive your live metadata event registrations.
